首页 · 产品中心 · 产品中心 · 光收发模块 ·10G光模块
10G光模块
永鼎光电子出品高性能、低成本的SFP+、SFP+BIDI、SFP+CWDM、SFP+DWDM、SFP+AOC、XFP、XFP CWDM、XFP DWDM光模块，以更快，只为更好的企业理念为客户提供响应更快和更优质的服务。
产品咨询
产品特性

产品支持SFP MSA和SFF-8472协议

产品速率从1G到10G不等

商业级/工业级应用

应用

数据通信10GE以太网，光纤通道

电信无线接入/CPRI，OTN传输

规格参数
Type Part Number Package Data Rate Wavelength Reach Transmitter Receiver TX output (dBm) RX Sensitivity (dBm) Power Consumption (W) Interface Temperature Application

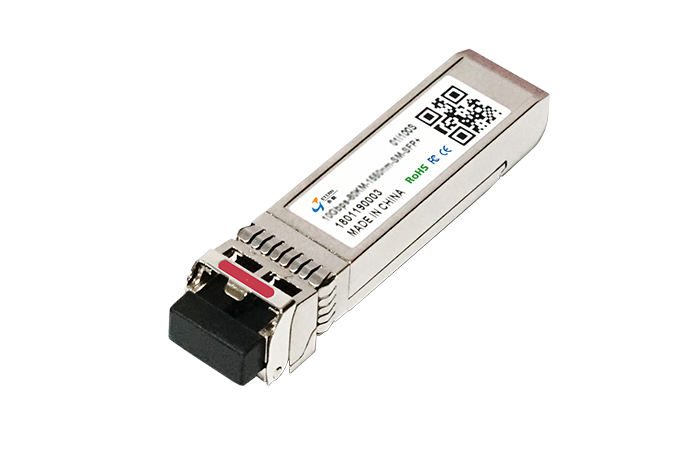

SFP+ Transeiver FLS10C030S SFP+ 10G 850nm 300M VCSEL PIN 0.5~-6 -10 <1 LC 0℃~70℃ 10GBASE-SR/SW
FLS10C050S SFP+ 10G 850nm 300M VCSEL PIN 0.5~-6 -10 <1 LC 0℃~70℃ 10GBASE-SR/SW
FLS06C110S SFP+ 6G 1310nm 2KM FP PIN 2~-6 -14.4 <1 LC 0℃~70℃ CPRI/OBSAI
FLS06I110S SFP+ 6G 1310nm 2KM FP PIN 2~-6 -14.4 <1 LC -40℃~85℃ CPRI/OBSAI
FLS10C102S SFP+ 10G 1310nm 2KM FP PIN 2~-6 -14.4 <1 LC 0℃~70℃ 10GBASE-LR/LW
FLS10I102S SFP+ 10G 1310nm 2KM FP PIN 2~-6 -14.4 <1 LC -40℃~85℃ 10GBASE-LR/LW
FLS10C110S SFP+ 10G 1310nm 10KM DFB PIN 2~-6 -14.4 <1 LC 0℃~70℃ 10GBASE-LR/LW
FLS10I110S SFP+ 10G 1310nm 10KM DFB PIN 2~-6 -14.4 <1 LC -40℃~85℃ 10GBASE-LR/LW
FLS10C112S SFP+ 10G 1310nm 20KM DFB PIN 2~-6 -15 <1 LC 0℃~70℃ 10GBASE-LR/LW
FLS10I112S SFP+ 10G 1310nm 20KM DFB PIN 2~-6 -15 <1 LC -40℃~85℃ 10GBASE-LR/LW
FLS10C113S SFP+ 10G 1310nm 40KM DFB PIN 5~0 -15 <1 LC 0℃~70℃ 10GBASE-ER/EW
FLS10I113S SFP+ 10G 1310nm 40KM DFB PIN 5~0 -15 <1 LC -40℃~85℃ 10GBASE-ER/EW
FLS10C240S SFP+ 10G 1550nm 40KM EML PIN 2~-2 -16 <1.5 LC 0℃~70℃ 10GBASE-ER/EW
FLS10I240S SFP+ 10G 1550nm 40KM EML PIN 2~-2 -16 <1.8 LC -40℃~85℃ 10GBASE-ER/EW
FLS10C243S SFP+ 10G 1550nm 40KM EML PIN 2~-2 -16 <1.8 LC 0℃~70℃ 10GBASE-ER/EW CDR
FLS10I243S SFP+ 10G 1550nm 40KM EML PIN 2~-2 -16 <2 LC -40℃~85℃ 10GBASE-ER/EW CDR
FLS10C280S SFP+ 10G 1550nm 80KM EML APD 4~0 -23 <1.8 LC 0℃~70℃ 10GBASE-ZR/ZW
FLS10I280S SFP+ 10G 1550nm 80KM EML APD 4~0 -23 <2 LC -40℃~85℃ 10GBASE-ZR/ZW
FLS10C283S SFP+ 10G 1550nm 80KM EML APD 4~0 -23 <2.3 LC 0℃~70℃ 10GBASE-ZR/ZW CDR
FLS10I283S SFP+ 10G 1550nm 80KM EML APD 4~0 -23 <2.5 LC -40℃~85℃ 10GBASE-ZR/ZW CDR
SFP+ AOC FLS10C009S-Lxx SFP+ 10G - 0.5M~30M VCSEL PIN - - - AOC 0℃~70℃ 10GBASE-SR/SW
Type Part Number Package Data Rate Wavelength Reach Transmitter Receiver TX output (dBm) RX Sensitivity (dBm) Power Consumption (W) Interface Temperature Application

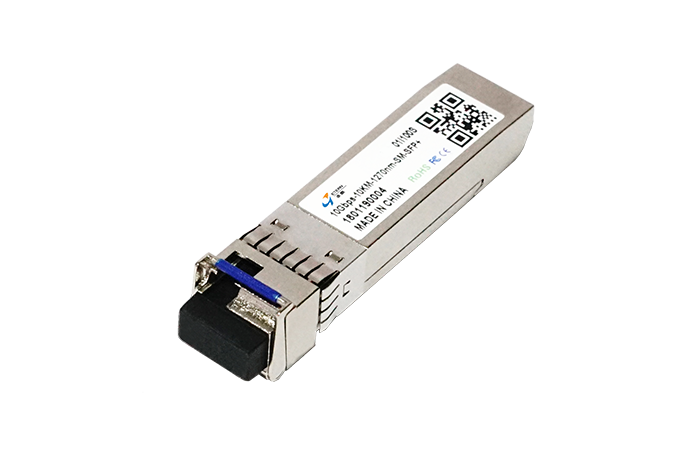

SFP+ BIDI Transceiver FLS10C411S-B27 SFP+ 10G TX:1270nm/RX:1330nm 10KM DFB PIN 2~-6 -14.4 <1 LC 0℃~70℃ 10GBASE-BX
FLS10C411S-B33 SFP+ 10G TX:1330nm/RX:1270nm 10KM DFB PIN 2~-6 -14.4 <1 LC 0℃~70℃ 10GBASE-BX
FLS10I411S-B27 SFP+ 10G TX:1270nm/RX:1330nm 10KM DFB PIN 2~-6 -14.4 <1 LC -40℃~85℃ 10GBASE-BX
FLS10I411S-B33 SFP+ 10G TX:1330nm/RX:1270nm 10KM DFB PIN 2~-6 -14.4 <1 LC -40℃~85℃ 10GBASE-BX
FLS10C421S-B27 SFP+ 10G TX:1270nm/RX:1330nm 20KM DFB PIN 2~-6 -15 <1 LC 0℃~70℃ 10GBASE-BX
FLS10C421S-B33 SFP+ 10G TX:1330nm/RX:1270nm 20KM DFB PIN 2~-6 -15 <1 LC 0℃~70℃ 10GBASE-BX
FLS10I421S-B27 SFP+ 10G TX:1270nm/RX:1330nm 20KM DFB PIN 2~-6 -15 <1 LC -40℃~85℃ 10GBASE-BX
FLS10I421S-B33 SFP+ 10G TX:1330nm/RX:1270nm 20KM DFB PIN 2~-6 -15 <1 LC -40℃~85℃ 10GBASE-BX
FLS10C441S-B27 SFP+ 10G TX:1270nm/RX:1330nm 40KM DFB PIN 5~0 -15 <1 LC 0℃~70℃ 10GBASE-BX
FLS10C441S-B33 SFP+ 10G TX:1330nm/RX:1270nm 40KM DFB PIN 5~0 -15 <1 LC 0℃~70℃ 10GBASE-BX
FLS10I441S-B27 SFP+ 10G TX:1270nm/RX:1330nm 40KM DFB PIN 5~0 -15 <1 LC -40℃~85℃ 10GBASE-BX
FLS10I441S-B33 SFP+ 10G TX:1330nm/RX:1270nm 40KM DFB PIN 5~0 -15 <1 LC -40℃~85℃ 10GBASE-BX
FLS10C461S-B27 SFP+ 10G TX:1270nm/RX:1330nm 60KM DFB APD 5~0 -20 <1.2 LC 0℃~70℃ 10GBASE-BX
FLS10C461S-B33 SFP+ 10G TX:1330nm/RX:1270nm 60KM DFB APD 5~0 -20 <1.2 LC 0℃~70℃ 10GBASE-BX
FLS10I461S-B27 SFP+ 10G TX:1270nm/RX:1330nm 60KM DFB APD 5~0 -20 <1.2 LC -40℃~85℃ 10GBASE-BX
FLS10I461S-B33 SFP+ 10G TX:1330nm/RX:1270nm 60KM DFB APD 5~0 -20 <1.2 LC -40℃~85℃ 10GBASE-BX

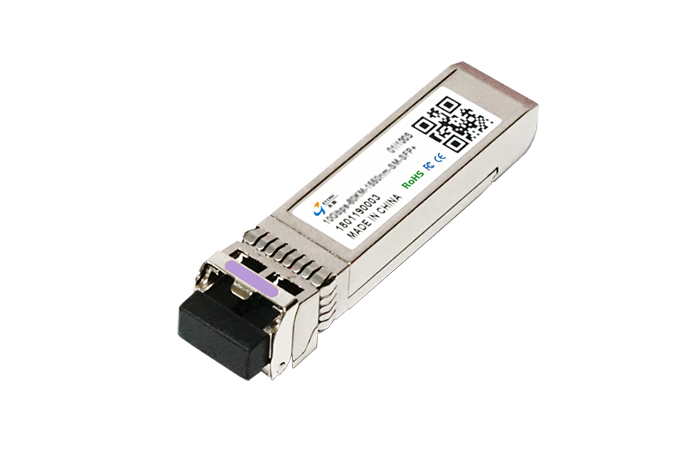

SFP+ CWDM Transceiver FLS10C114S-C27~C61 SFP+ 10G CWDM 10KM DFB PIN 6~0 -14.4 <1 LC 0℃~70℃ 10GBASE-LR/LW
FLS10C115S-C27~C37 SFP+ 10G CWDM 20KM DFB PIN 6~0 -14.4 <1 LC 0℃~70℃ 10GBASE-LR/LW
FLS10C116S-C27~C37 SFP+ 10G CWDM 40KM DFB PIN 6~0 -14.4 <1 LC 0℃~70℃ 10GBASE-ER/EW
FLS10C242S-C47~C61 SFP+ 10G CWDM 40KM EML PIN 2~-2 -16 <1.5 LC 0℃~70℃ 10GBASE-ER/EW
FLS10I242S-C47~C61 SFP+ 10G CWDM 40KM EML PIN 2~-2 -16 <1.8 LC -40℃~85℃ 10GBASE-ER/EW
FLS10C245S-C47~C61 SFP+ 10G CWDM 40KM EML PIN 2~-2 -16 <1.8 LC 0℃~70℃ 10GBASE-ER/EW CDR
FLS10I245S-C47~C61 SFP+ 10G CWDM 40KM EML PIN 2~-2 -16 <2 LC -40℃~85℃ 10GBASE-ER/EW CDR
FLS10C282S-C47~C61 SFP+ 10G CWDM 80KM EML APD 4~0 -23 <1.8 LC 0℃~70℃ 10GBASE-ZR/ZW
FLS10I282S-C47~C61 SFP+ 10G CWDM 80KM EML APD 4~0 -23 <2 LC -40℃~85℃ 10GBASE-ZR/ZW
FLS10C285S-C47~C61 SFP+ 10G CWDM 80KM EML APD 4~0 -23 <2.3 LC 0℃~70℃ 10GBASE-ZR/ZW CDR
FLS10I285S-C47~C61 SFP+ 10G CWDM 80KM EML APD 4~0 -23 <2.5 LC -40℃~85℃ 10GBASE-ZR/ZW CDR
Type Part Number Package Data Rate Wavelength Reach Transmitter Receiver TX output (dBm) RX Sensitivity (dBm) Power Consumption (W) Interface Temperature Application
SFP+ DWDM Transceiver FLS10C241S-D17~H61 SFP+ 10G DWDM 40KM EML PIN 2~-2 -16 <1.5 LC 0℃~70℃ 10GBASE-ER/EW
FLS10I241S-D17~H61 SFP+ 10G DWDM 40KM EML PIN 2~-2 -16 <1.8 LC -40℃~85℃ 10GBASE-ER/EW
FLS10C244S-D17~H61 SFP+ 10G DWDM 40KM EML PIN 2~-2 -16 <1.8 LC 0℃~70℃ 10GBASE-ER/EW CDR
FLS10I244S-D17~H61 SFP+ 10G DWDM 40KM EML PIN 2~-2 -16 <2 LC -40℃~85℃ 10GBASE-ER/EW CDR
FLS10C281S-D17~H61 SFP+ 10G DWDM 80KM EML APD 4~0 -23 <1.8 LC 0℃~70℃ 10GBASE-ZR/ZW
FLS10I281S-D17~H61 SFP+ 10G DWDM 80KM EML APD 4~0 -23 <2 LC -40℃~85℃ 10GBASE-ZR/ZW
FLS10C284S-D17~H61 SFP+ 10G DWDM 80KM EML APD 4~0 -23 <2.3 LC 0℃~70℃ 10GBASE-ZR/ZW CDR
FLS10I284S-D17~H61 SFP+ 10G DWDM 80KM EML APD 4~0 -23 <2.5 LC -40℃~85℃ 10GBASE-ZR/ZW CDR

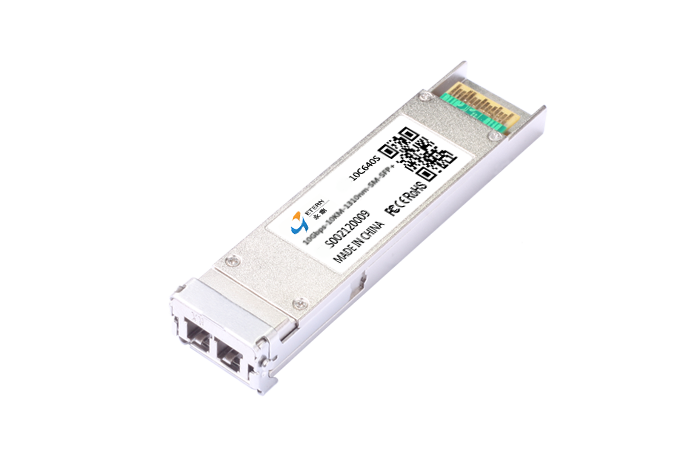

XFP Transeiver FLS10C610S XFP 10G 1310nm 10KM DFB PIN 2~-6 -14.4 <3.5 LC 0℃~70℃ 10GBASE-SR/SW
FLS10I610S XFP 10G 1310nm 10KM DFB PIN 2~-6 -14.4 <3.5 LC -40℃~85℃ 10GBASE-SR/SW
XFP DWDM Transeiver FLS10C641S-D17~H61 XFP 10G DWDM 40KM EML PIN 2~-2 -16 <3.5 LC 0℃~70℃ 10GBASE-ER/EW
FLS10I641S-D17~H61 XFP 10G DWDM 40KM EML PIN 2~-2 -16 <3.5 LC -40℃~85℃ 10GBASE-ER/EW
FLS10C681S-D17~H61 XFP 10G DWDM 40KM EML APD 4~0 -23 <3.5 LC 0℃~70℃ 10GBASE-ZR/ZW
FLS10I681S-D17~H61 XFP 10G DWDM 40KM EML APD 4~0 -23 <3.5 LC -40℃~85℃ 10GBASE-ZR/ZW
XFP CWDM Transeiver FLS10C642S-C47~C61 XFP 10G CWDM 40KM EML PIN 2~-2 -16 <3.5 LC 0℃~70℃ 10GBASE-ER/EW
FLS10I642S-C47~C61 XFP 10G CWDM 40KM EML PIN 2~-2 -16 <3.5 LC -40℃~85℃ 10GBASE-ER/EW
FLS10C682S-C47~C61 XFP 10G CWDM 40KM EML APD 4~0 -23 <3.5 LC 0℃~70℃ 10GBASE-ZR/ZW
FLS10I682S-C47~C61 XFP 10G CWDM 40KM EML APD 4~0 -23 <3.5 LC -40℃~85℃ 10GBASE-ZR/ZW
经营理念
通力合作 联合创新 将产品放到产业链、产业生态中去布局规划，对外重视供应链竞争力，对内打破壁垒，合作利他
客户至上 始终如一 关注用户需求和期望，通过贯彻管理体系，力争超越用户期望
厚德至诚 工匠精神 不断提高自主创新意识，发挥工匠精神 精益求精 精进不休 臻于完美 止于至善
质量保证 按时交付 建立国际标准化的质量保证体系，严格实施标准化管理和控制，不断提高交付能力与成本优势
